The Value of Custom-Made Punching Tools for Aluminium Profile Machining

One of the key decisions during production planning of your bespoke aluminium profile is choosing the right machining process to bring your product to life. The goal is to find the least time-consuming process that produces the best results.

When your aluminium profile requires multiple machined operations with relatively tight tolerances, your production volumes are high enough, and your product's machined features are suitable for punching, then punching is often one of the most efficient ways to machine your aluminium profile.

What is a punching tool?

Let's start by explaining what punching an aluminium profile entails.

So, punching an aluminium profile is a machining process that uses a specially designed punch and die to apply enough force to cut or form the aluminium, commonly used to create holes, slots, notches, and other features quickly and accurately.

The punch is the part of the machine that moves downward and applies the force to the aluminium. The die is the part that supports the material and contains the opening or cavity that the punch pushes into. (Both parts together are referred as the punching tool / punch press tool in this article, and in general, too.)

For a bespoke aluminium profile, both the punch and the die must be custom-designed to match the profile's shape and the feature being created.

When is it worth getting a custom punching tool made to your aluminium profile

It isn't always worth the investment to have a custom punching tool manufactured, especially if your supplier needs to outsource it. But when your production runs are large enough, and your profile is particularly difficult to machine consistently, then investing in a dedicated punching tool can absolutely be worthwhile—especially if your supplier designs and manufactures the tooling themselves (reduces costs even more).

But why is it worth the investment, you ask?

• First, it provides much better repeatability. A properly maintained punch tool produces extremely consistent results because every cycle follows the same mechanical path. Punch tools do wear over time, just like any other tools, but dimensional variation generally remains very low until maintenance is required. Better repeatability can also mean less scrap and, ultimately, lower production costs.

• Second, it's much faster. You punch the feature and it's done. Pretty self-explanatory: less machining time means lower production costs.

Punching your bespoke aluminium profile's machined features can provide better precision and significantly shorter machining times, both helping to reduce manufacturing costs.

The challenge with custom-made punching tools and how to solve it

Like all good things, there's a catch. In the case of custom punching tools for aluminium profiles, it's the cost. Having a bespoke tool manufactured costs money—sometimes a lot of it—which means you'll need sufficient production volumes to justify the investment and achieve a return over time. You also have to factor in maintenance, as well as the time required to manufacture the tooling in the first place.

For many manufacturers, these costs can outweigh the efficiency gains, so CNC machining remains the better option.

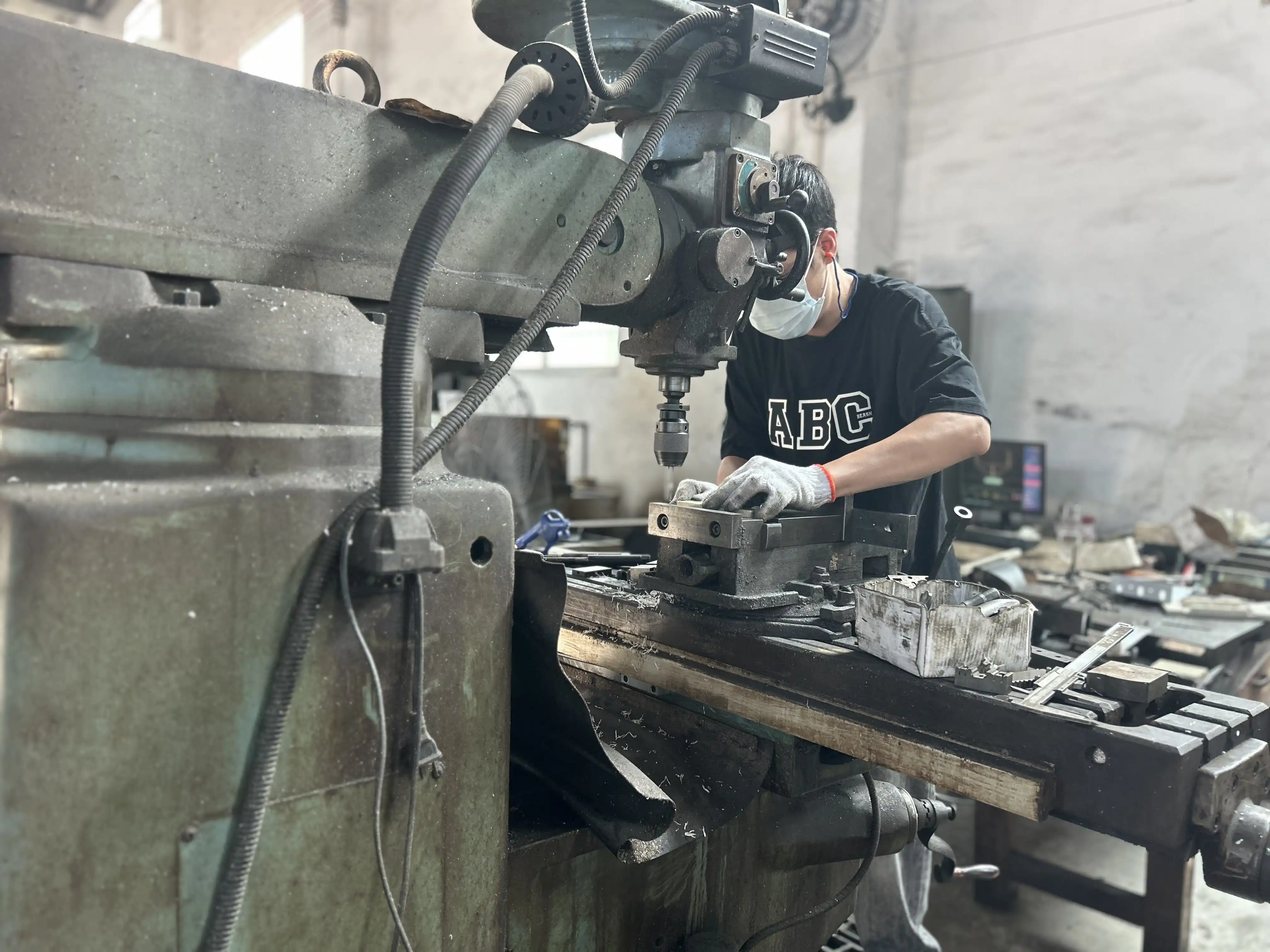

But if the tools are made in-house, using dedicated equipment like a CNC machine with electro-erosion (EDM) technology, and there's an experienced team available to maintain them, then the equation changes. It reduces lead times, improves quality control, gives greater control over maintenance, and significantly lowers tooling costs. Depending on the production volumes and the machining required, custom punching often becomes the more economical solution.

At ALUCAD, whenever we see an opportunity to use punching, we take a close look at it because we've consistently seen the benefits.

We once had a client who approached us with a complex bespoke aluminium profile that had originally been planned for waterjet cutting. But our engineering team identified an opportunity to use punching instead and designed a dedicated punch press tool that produced the same geometry in less than half the machining time, significantly reducing costs while also improving consistency.

By manufacturing our custom punching tools internally, we're able to achieve excellent dimensional consistency, faster throughput, and lower overall production costs.

Optimised machining for your bespoke aluminium profile

If you’re developing a bespoke machined aluminium profile with tight tolerances or demanding machining requirements and the costs are greater than you’d like, or the results are too inconsistent, there may be more efficient ways to machine your product to life, and one of those ways could be using a punch press with a dedicated tool.

With ALUCAD's in-house aluminium profile machining, including custom punching tool fabrication, we can offer a faster, more economical route to achieving your design intent. Contact ALUCAD to find out more about how we can optimise your bespoke aluminium profile manufacturing.
