Engineers designing modern electronics are expected to do more with less. They’re expected to deliver higher power, greater component density, and smaller enclosures, all under tight cost and time constraints, putting pressure on thermal performance.

As heat loads increase and space shrinks, it becomes harder to dissipate heat efficiently without adding size or complexity. Which means you need a solution that fits within limited space, handles rising thermal loads, and still performs when airflow isn’t perfectly controlled.

Standard extruded aluminium heat sinks assume aligned, predictable airflow, but in compact, high-power systems, airflow is rarely uniform or well-directed. This is when aluminium pin fin heat sinks become desirable.

Designed for these conditions, aluminium pin fin heat sinks increase usable surface area, reduce thermal resistance from the base, and allow air to move through the structure from multiple directions, making performance more reliable when airflow isn’t ideal.

Let’s break down what a pin fin heat sink is, how it compares to a standard straight-fin design, and when it makes sense to use one.

What is an aluminium pin fin heat sink?

In a typical aluminium heat sink, you have straight, parallel fins formed during extrusion. Air is expected to move through those channels in a controlled way.

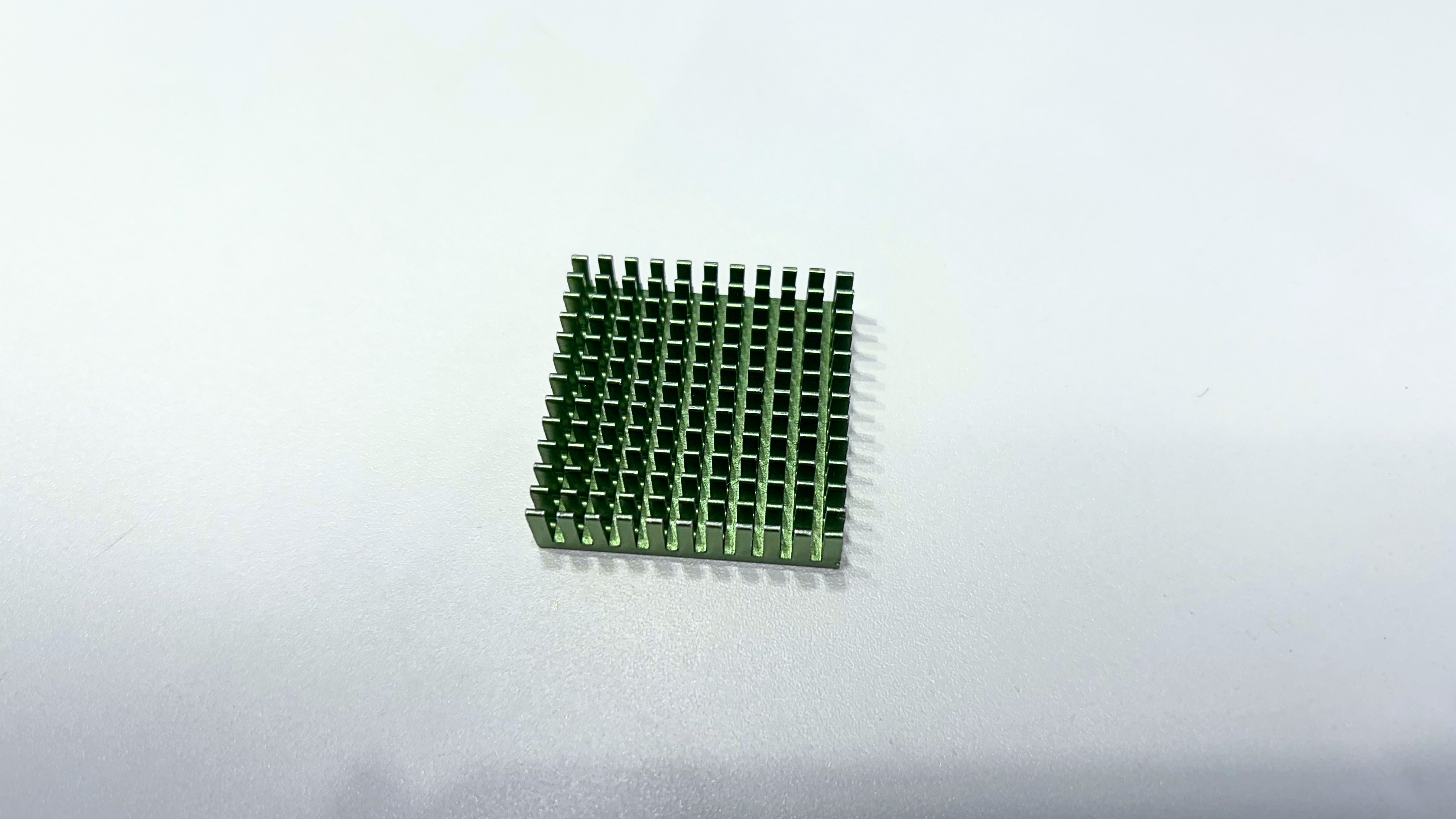

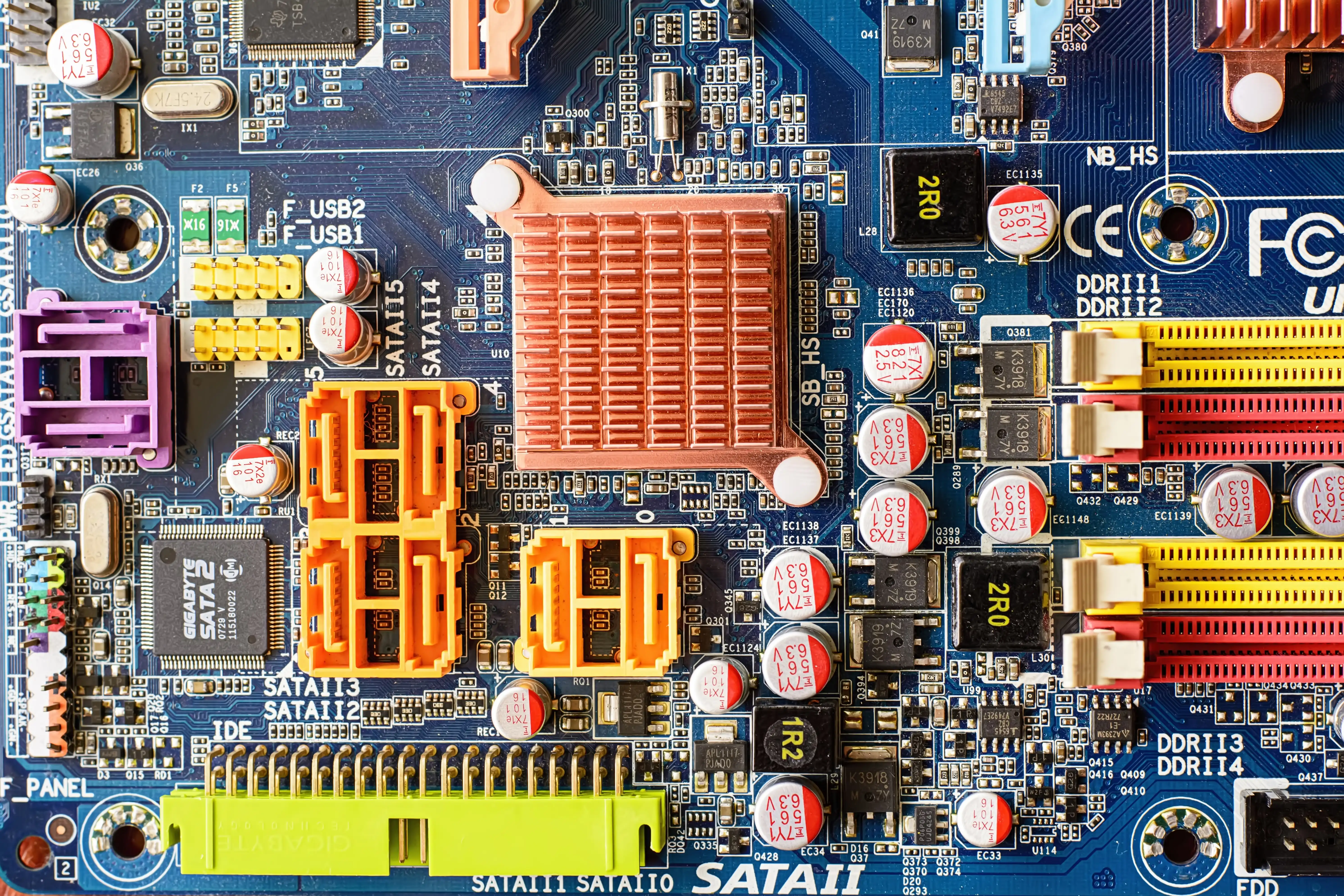

With a pin fin heat sink, the geometry is modified after extrusion. The base profile is machined to create an array of pins—round, square, or another optimised shape—changing how air moves through the part.

Instead of forcing airflow in one direction, the structure opens it up. Air can pass through the heat sink from multiple angles, which is exactly what you want when conditions aren’t ideal.

Aluminium pin fin heat sink VS straight fin heat sink design

A straight-fin aluminium heat sink works best when airflow is clean, aligned, and predictable.

But inside compact enclosures or around dense assemblies, you get recirculation, turbulence, and uneven distribution, in other words, uncontrolled airflow.

Since the geometry of a pin fin heat sink isn’t directional, performance holds up much better when airflow shifts or breaks down. Pin fins aren’t inherently more efficient, just more tolerant. Their advantage comes from maintaining performance when airflow is non-uniform.

When to use an aluminium pin fin heat sink

Unpredictable or disturbed airflow

As mentioned, if you don’t fully control how air moves through your system, straight fins quickly lose efficiency. Pin fins are far more tolerant of this. Air can enter and exit from multiple directions, and performance remains relatively stable even in messy flow conditions.

Natural convection and passive cooling

In passive designs, airflow is weak and driven by buoyancy rather than fans. Pin fins help here by encouraging air movement through the structure and limiting the buildup of stagnant thermal layers. As air moves through the pin array, the thermal boundary layer is continuously disrupted around each pin. Instead of developing along a long, uninterrupted surface—as it does with straight fins—it is repeatedly broken up, which improves heat transfer.

Compact designs with high heat density

When you can’t increase the size of the heat sink, you have to get more out of the volume you already have. Pin fin structures allow you to pack more effective surface area into a given footprint while still letting air move through the geometry. Each pin acts as an individual heat transfer surface, with air flowing around it locally rather than being confined to a single channel. This creates multiple small-scale interactions instead of one bulk flow path.

Changing orientation

Straight fins are sensitive to how the part is positioned, especially in natural convection. Pin fins are much less dependent on orientation. Whether the product is mounted vertically, horizontally, or somewhere in between, performance stays more consistent.

The design flexibility of pin fin heat sinks

One of the biggest strengths of an aluminium pin fin heat sink is how much control you have over the geometry.

You’re not locked into a fixed fin structure. Instead, you can tune the design to match the thermal and mechanical constraints of the application. Engineers can adjust the overall height of the heat sink, pin height, base thickness, footprint, pin diameter, and pin density to reach an optimal cooling solution.

This level of control allows for a high degree of customisation, making it possible to optimise performance rather than compromise around a standard profile.

The limitations of aluminium pin fin heat sinks to be aware of

When using forced air

If you’re using forced air—such as a fan or blower—pin fin heat sinks are not always the most efficient option.

As air is pushed through a pin fin structure, it encounters more resistance than it would with straight, parallel fins. This creates a higher pressure drop, meaning the fan has to work harder to maintain the same airflow.

In systems where airflow is strong, well-directed, and properly ducted, straight-fin heat sinks can often perform better. They guide air more efficiently through defined channels, allowing higher flow rates with less resistance.

Pin fins still improve heat transfer by disrupting airflow and breaking up thermal boundary layers, but under forced convection, that benefit can be offset by the added resistance.

In short, if your airflow is already controlled and optimised, a pin fin design may introduce unnecessary losses rather than gains.

Added costs

Pin fin heat sinks are more demanding to produce than standard extruded aluminium heat sinks. Because the pins are created through machining, you’re adding a secondary operation, which has a direct impact either on cost, lead time, or both.

Design considerations

Performance is sensitive to design choices. If pin spacing is too tight, airflow is restricted. If it’s too open, you lose surface area. The geometry needs to be properly balanced. In systems where airflow is already well controlled, the added complexity may not bring enough benefit to justify the change.

So, would you benefit from a pin fin heat sink design?

An aluminium pin fin heat sink is a solution for situations where standard assumptions about airflow don’t hold. Therefore, they make sense when airflow is unpredictable, when passive cooling matters, or when you’re trying to push more performance out of a limited space.

Most often, pin fins are chosen not because they deliver the absolute best-case performance, but because they deliver reliable performance across a wider range of real-world conditions.

If your airflow is clean and controlled, a straight-fin design will often be simpler and more cost-effective. But if it isn’t, pin fins give you the flexibility and robustness to make the thermal design work.

---
